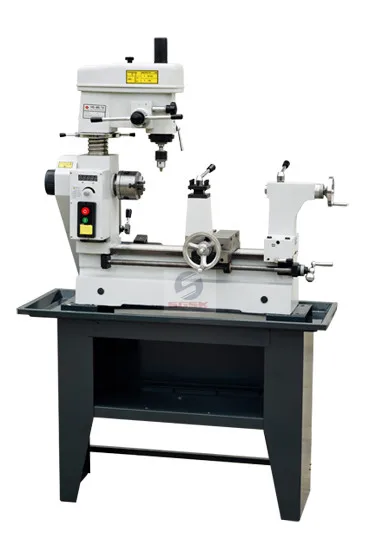

grizzlyHQ400 HQ400/1 mill drill lathe combo machine specifition

  • >=1 Sets
    $1,030.00
Max. Swing Diameter (mm):
420
Spindle bore:
20
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, FACTORY
Max. Length of Workpiece (mm):
400
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Brand Name:
SGSK
Certification:
ISO CE
After-sales Service Provided:
Online support, Video technical support
Power (kW):
0.55
Weight (KG):
155
Warranty:
1 Year
Key Selling Points:
Competitive Price
Name:
grizzlyHQ400 HQ400/1 mill drill lathe combo machine specifition
Model:
HQ400 HQ400/1
Max.swing over bed:
420mm
Max.processing length:
400mm
Max. longitudinal travel:
380mm
Max. cross travel:
120mm
Range of speed:
375-1600r.p.m
Spindle hole:
20mm
Packing size(L*W*H):
1030*580*1070
Trade term:
EXW ,FOB ,CNF ,CIF
Supply Ability
Supply Ability:
100 Set/Sets per Month grizzlyHQ400 HQ400/1 mill drill lathe combo machine specifition
Packaging & Delivery
Packaging Details
Name:grizzlyHQ400 HQ400/1 mill drill lathe combo machine specifition
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

grizzlyHQ400 HQ400/1 mill drill lathe combo machine specifition



Product Description

Features:

Metric or Imperial thread cutting
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization

A kind of combination machines with turning, milling, drilling and threading

Product main technical specifications:

Specifications

HQ400(HQ400/1)

TURNING

Swing over bed

φ420mm

Distance between centers

400mm

Max. longitudinal travel

380mm

Max. cross travel

120mm

Taper of spindle

M.T.3

Spindle hole

φ20mm

Step of spindle speed

3

Range of spindle speed

500,900,1600r.p.m

Barrel travel

70mm

Taper of center

M.T.3

DRILLING & MILLING

Max. drilling capacity

φ15mm

Worktable size (L*W)

200×150mm²

Max. end mill capacity

φ20mm

Max. face capacity

φ63mm

Spindle travel

85mm

Headstock travel of up and down

HQ400/1:80mm

Spindle taper

M.T.3

Step of spindle speed

6

Range of spindle speed

375-1600r.p.m

Swivel angle of headstock

±360°

MOTOR

Motor power

0.55Kw

SHIPMENT DATA

Packing size

1030×580×1070mm

N. weight/G. weight

155kg/185kg

Loading amount

44pcs/20’container



Details display




Related Products
Company Information



FAQ



1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

Packaging & Shipping



Machine model :
Package: polywood case and steel set below

Shipping term can be choosen FOB ,CIF And so on at QingDao port ShangHai port China .etc
