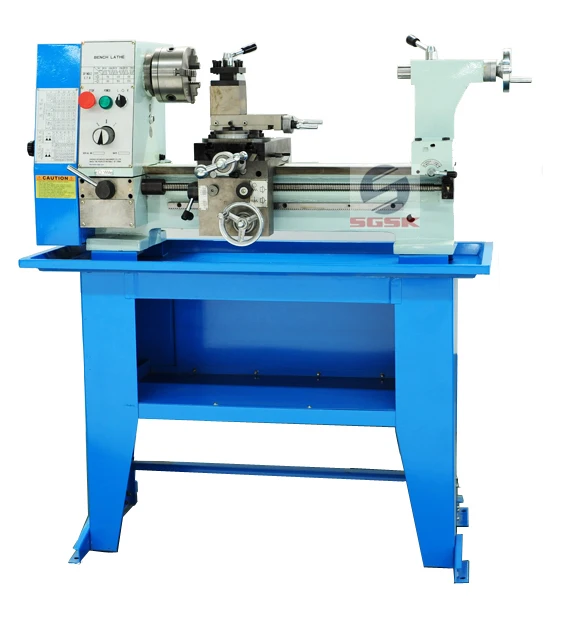

mini mill dill combo HQ500V HQ800V portable shenyang manual lathe

  • >=1 Sets
    $2,100.00
Max. Swing Diameter (mm):
420
Spindle bore:
28
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, FACTORY
Max. Length of Workpiece (mm):
500
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual
Brand Name:
SGSK
Certification:
ISO CE
After-sales Service Provided:
Online support, Video technical support
Power (kW):
0.55
Weight (KG):
245
Warranty:
1 Year
Key Selling Points:
Competitive Price
Name:
mini mill dill combo HQ500V HQ800V portable shenyang manual lathe
Model:
HQ500V HQ800V
Max.swing over bed:
420mm
Max.processing length:
500mm
Max. longitudinal travel:
440mm
Max. cross travel:
195mm
Range of speed:
Low:0-630rpm,High:630-1800RPM
Spindle hole:
28mm
Packing size(L*W*H):
1130*580*1100
Trade term:
EXW ,FOB ,CNF ,CIF
Supply Ability
Supply Ability:
100 Set/Sets per Month mini mill dill combo HQ500V HQ800V portable shenyang manual lath
Packaging & Delivery
Packaging Details
Name:mini mill dill combo HQ500V HQ800V portable shenyang manual lathe
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

mini mill dill combo HQ500V HQ800V portable shenyang manual lathe



Product Description

The main performance characteristics:

A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation and economization
Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.

HQ500V and HQ800V is with variable speed and DRO

Product main technical specifications:

Specifications

HQ500V

HQ800V

Turning

Swing over bed

φ 420mm

Distance between centers

500mm

800mm

Max. longitudinal travel

440mm

740mm

Max. cross travel

195mm

Taper of spindle

M. T. 4

Spindle hole

φ 28mm

Step of spindle speed

Variable speed

Range of spindle speed

Low:0-630rpm,High:630-1800RPM

Barrel travel

70mm

Taper of center

M. T. 3

Metric thread range

0.7-4 mm

Inch thread range

4-30T. P. I

Longitudinal range of automatic feeding

0.088-0.55mm/0.0035-0.022’’

Cross range of automatic feeding

0.088-0.55mm/0.0035-0.022’’

Drilling and milling

Max. drilling capacity

φ 22mm

Worktable size (L*W)

475× 160mm²

Max. end mill

φ 28mm

Max. face mill

φ 80mm

Distance between spindle center and column

285mm

Distance between spindle and worktable

306mm

Headstock travel of up and down

110mm

Spindle taper

M. T. 3

Step of spindle speed

Variable speed

Range of spindle speed

Low:0-800rpm,High:800-2800RPM

Swivel degree of headstock

± 360°

Motor

Motor power

0.55Kw

Shipping data

Packing size

1130×580×1100mm(HQ800:1430×580×1100mm)

N. weight/G. weight

245kg/280kg(HQ800:275kg/325kg)
