Conventional milling machine X5040 universal knee type milling machine

  • >=1 Sets
    $17,890.00
Table Size:
1700x400mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Home Use, Factory
Table Travel (X) (mm):
900
Table Travel (Y) (mm):
315
Table Travel (Z) (mm):
385
Spindle Taper:
ISO50
Range of Spindle Speed(r.p.m):
30 - 1500
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SGSK
Model Number:
X5040
Table Travel (mm):
1700x400
Type:
Vertical
CNC or Not:
Normal
Voltage:
220V 380V 415V
Dimension(L*W*H):
2560x2160x2400mm
Certification:
CE
Power (kW):
11
Weight (KG):
4250
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Online support
Key Selling Points:
Long Service Life
Product name:
Conventional milling machine X5040 universal knee type milling machine
Table size:
1700x400mm
T-type slot:
3-18-90
Max. load of table:
800kg
Longitudinal travel (manual/auto):
900/800mm
Transverse travel(manual/auto):
315/365mm
Vertical travel (manual/auto):
385/365mm
Cutting feed speed:
X.Y:23.5-1180. Z:8-394
Spindle travel:
85mm
Max. swivel angle of table:
±45°
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
Machine model:Conventional milling machine X5040 universal knee type milling machine
Package size : 2560x2130x2298mm
Weight: 4250kgs
Port
Any port in China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

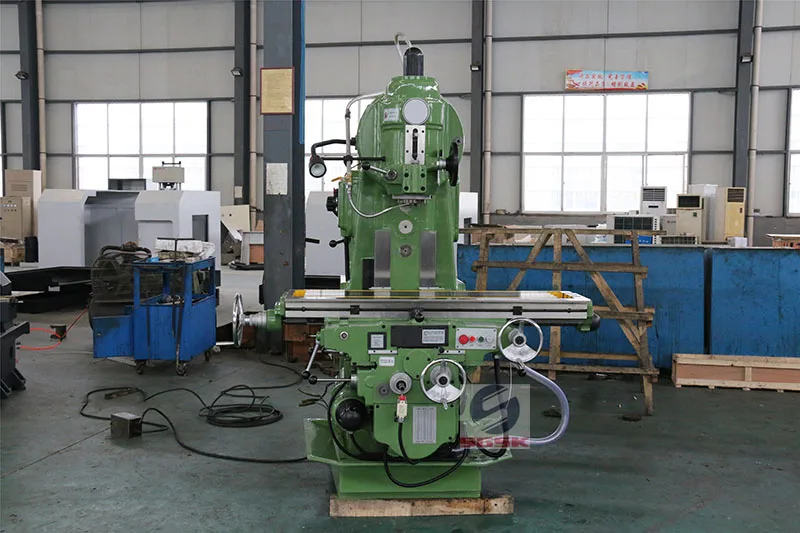

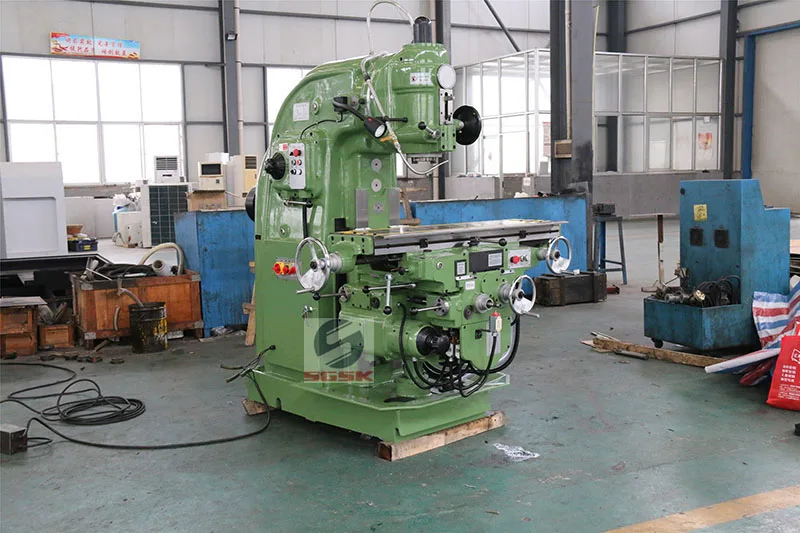

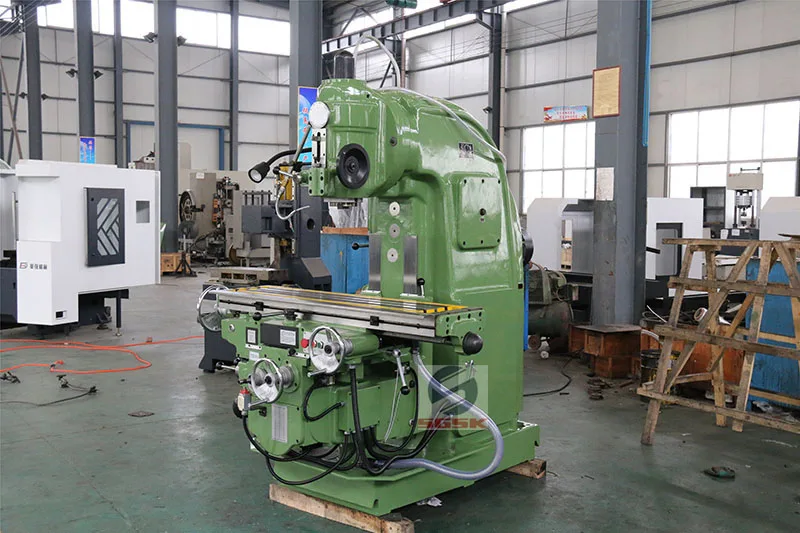

Conventional milling machine X5040 universal knee type milling machine

Product Description



The main performance characteristics:

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

3. Work bench X. Y.Z  are gear drive automatic feed and manual operation

4. Milling head can be rotated 45 degrees,

Application:

1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

Specifications

Units

X5032

X5040

Table size

mm

1320x320

1700x400

T-type slot numbers / width /space

mm

3-18-70

3-18-90

Max. load of table

kg

500

800

Longitudinal travel (manual/auto)

mm

700/680

900/880

Transverse travel(manual/auto)

mm

255/240

315/300

Vertical travel (manual/auto)

mm

370/350

385/365

Cutting feed speed

mm/min

X.:23.5-1180.Y:15-786.Z:8-394

X.Y:23.5-1180. Z:8-394

Rapid feed speed

mm/min

X:2300.Y:1533.Z:770

X.Y:2300..Z:770

Spindle travel

mm

70

85

Distance between spindle nose and table surface

mm

60-430

130-515

Max. swivel angle of table



±45°

±45°

Spindle speed step

(steps)

18

18

Spindle speed range

rpm

30-1500

30-1500

Spindle  motor power

KW

7.5

11

Overall dimensions

mm

2294x1770x1960

2560x2130x2298

Machine  weight

Kg

2800

4250

Details Display



Related Products
Factory Show



Customer vist



FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .
