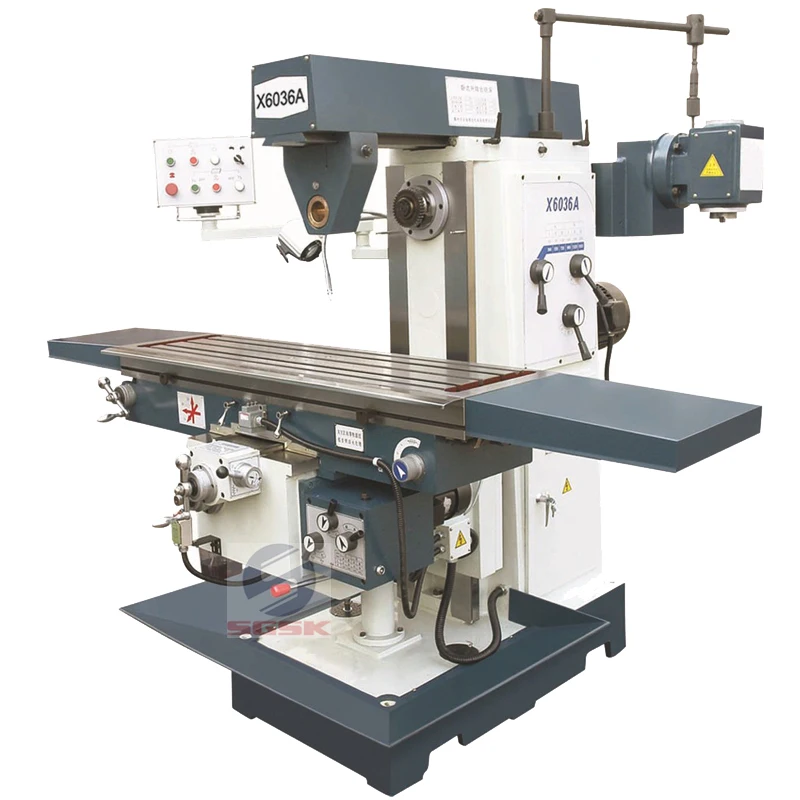

X6036 benchtop mini milling machine tools horizontal

  • >=1 Sets
    $7,250.00
Table Size:
1500*360mm X6036 benchtop mini milling machine tools horizontal
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, factory
Range of Spindle Speed(r.p.m):
60 - 1800
Condition:
New
Place of Origin:
China
Brand Name:
SGSK
Model Number:
X6036
Type:
Horizontal
CNC or Not:
Normal
Power (kW):
5.5
Weight (KG):
2300
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
Competitive Price
Name:
X6036 benchtop mini milling machine tools horizontal
Model:
X6036
Table size:
1500*360mm
Table travel (X.Y.Z):
1000*320*400mm
Max. load working table:
320kg
Distance from spindle axis to table:
0-400mm
Spindle motor power:
5.5kw
Overall dimensions(L*W*H):
2360*1790*1860
Machine weight:
2300
Trade term:
EXW ,FOB ,CNF ,CIF
Supply Ability
Supply Ability:
100 Set/Sets per Month X6036 benchtop mini milling machine tools horizontal
Packaging & Delivery
Packaging Details
Name:X6036 benchtop mini milling machine tools horizontal
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

X6036 benchtop mini milling machine tools horizontal



Product Description

The main performance characteristics:

1. The main components of the base, the body, the working platform, the middle slide seat and the lifting sliding seat are made of high strength material, and the stability of the machine tool long-term use is ensured by the artificial aging treatment.

2. The spindle bearing of the machine tool is a tapered roller bearing. The main shaft adopts three supporting structure. The system has good rigidity, strong bearing capacity, and the main shaft adopts energy consumption brake, the braking torque is big, and the stop is fast and reliable.

3. The main drive part and the work table feed part adopts the gear speed change structure, the speed regulation scope is wide, the speed change is convenient, quick.

4. Table of X, y, and Z to have manual feed, mobile feed and maneuver fast forward three, different feed speed, can meet the requirements of different processing; fast feed can quickly reach the work piece, the processing position, convenient and rapid processing and shorten the processing time.

5. Table x to travel up to 1000mm, and expand the scope of the machine, y, and Z to guide for the wide rectangular guide rail and X, y, Z three direction guide rail vice via ultra audio frequency induction hardening, precision grinding and scraping treatment, with forced lubrication, improve the accuracy, prolong the service life of the machine.

6. Lubricating device for vertical, horizontal and vertical to the screw and guide rail are forced lubrication, reduce the tool wear, which guarantees the machine to the efficient functioning of; at the same time, cooling system by adjusting the nozzle change the size of the coolant flow, to meet the needs of different processing.

7. The operating system of the machine tool is hung on the left front of the machine tool through a supporting arm, which is in accordance with the principle of human body engineering and is easy to operate. operation panel are using image symbol design, simple and intuitive.



Application:

This machine is a common metal cutting machine tools, spindle taper hole can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for machining various parts of the plane, inclined plane, grooves, holes, machinery manufacturing, mold, apparatus, instrument, automobile, motorcycle, etc. industry ideal processing equipment.

Product main technical parameters:

Specifications

Units

X6036A

Table size

mm

1500x360

Table travel (X.Y.Z)

mm

1000/320/400

T-type slot numbers / width /space

mm

3/18/80

Max. load working table

kg

320

Distance from spindle axis to table

mm

0-400

Spindle hole center to the sliding pillow plane distance

mm

175

Spindle end face to face dimensions vertical and horizontal motor feed speed

mm/min

8 steps22—555 (Fast forward 830)

Vertical lift speed of working table

mm/min

11/275

Ram stroke

mm

500

Spindle taper



ISO50(7:24)

Spindle speed range

rpm

60-1800(12steps)

Spindle  motor power

KW

5.5

Table motor feed motor power

W

750

Motor power of elevating motor

KW

1.1

Cooling pump motor power

W

90

Cooling pump flow

L./min

25

Overall dimensions(Lx W x H)

mm

2360x1790x1860

Machine  weight

Kg

2300

Configuration of vertical milling head parameters

Vertical Milling head spindle taper



ISO40 (7:24)

Distance from spindle center to column surface

mm

320

Spindle end face to table face dimensions

mm

0-290

Details display




Related Products



Company Information



FAQ



1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

Packaging & Shipping



Machine model :
Package: polywood case and steel set below

Shipping term can be choosen FOB ,CIF And so on at QingDao port ShangHai port China .etc
