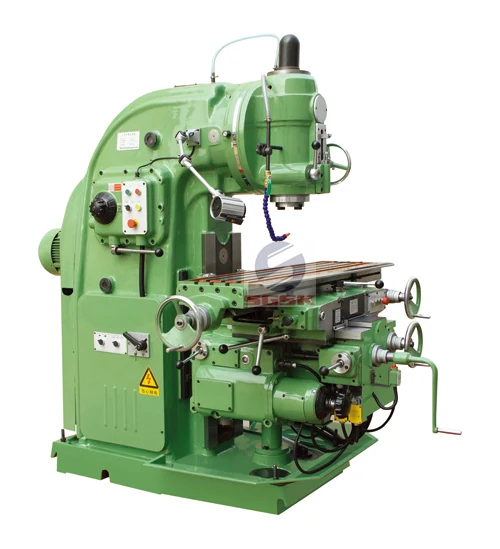

X5032 universal knee type industrial metal milling machine

  • >=1 Sets
    $1,450.00
Table Size:
1320x320mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, factory
Range of Spindle Speed(r.p.m):
30 - 1500
Condition:
New
Place of Origin:
China
Brand Name:
SGSK
Model Number:
X5032 X5040 X5045
Year:
2019
Type:
Vertical
CNC or Not:
Normal
Certification:
CE
Power (kW):
7.5
Weight (KG):
2800
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
Competitive Price
Name:
X5032 universal knee type industrial metal milling machine
Model:
X5032 X5040 X5045
Table size:
1320x320mm
Max. load of table:
500kg
Longitudinal travel (manual/auto):
700/680mm
Transverse travel(manual/auto):
255/240mm
Vertical travel (manual/auto):
370/350mm
Overall dimensions:
2294x1770x1960mm
Machine weight:
2800kg
Trade term:
EXW ,FOB ,CNF ,CIF
Supply Ability
Supply Ability:
100 Set/Sets per Month X5032 universal knee type industrial metal milling machine
Packaging & Delivery
Packaging Details
Name:X5032 universal knee type industrial metal milling machine
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

X5032 universal knee type industrial metal milling machinee



Product Description

The main performance characteristics:

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

3. Work bench X. Y.Z  are gear drive automatic feed and manual operation

4. Milling head can be rotated 45 degrees,

Application:

1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

Specifications

Units

X5032

X5040

X5045

Table size

mm

1320x320

1700x400

2000x450

T-type slot numbers / width /space

mm

3-18-70

3-18-90

18

Max. load of table

kg

500

800

800

Longitudinal travel (manual/auto)

mm

700/680

900/880

1800

Transverse travel(manual/auto)

mm

255/240

315/300

400

Vertical travel (manual/auto)

mm

370/350

385/365

460

Cutting feed speed

mm/min

X.:23.5-1180.Y:15-786.Z:8-394

X.Y:23.5-1180. Z:8-394

X.Y:10-1000  Z:10-450

Rapid feed speed

mm/min

X:2300.Y:1533.Z:770

X.Y:2300..Z:770

1800

Spindle travel

mm

70

85

85

Distance between spindle nose and table surface

mm

60-430

130-515

30-600

Max. swivel angle of table



±45°

±45°

±45°

Spindle speed step

(steps)

18

18

18

Spindle speed range

rpm

30-1500

30-1500

30-1500

Spindle  motor power

KW

7.5

11

11

Overall dimensions

mm

2294x1770x1960

2560x2130x2298

2560x2160x2400

Machine  weight

Kg

2800

4250

5100



Details display




Related Products



Company Information



FAQ



1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

Packaging & Shipping



Machine model :
Package: polywood case and steel set below

Shipping term can be choosen FOB ,CIF And so on at QingDao port ShangHai port China .etc
