XH715 machining center cnc lathe brands high speed milling machine

  • >=1 Sets
    $37,000.00
Model Number:
XH715 machining center cnc lathe brands high speed milling XH715
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, factory
Condition:
New
Type:
Vertical
Place of Origin:
Shandong, China
Brand Name:
SGSK
Weight (T):
6.7
Power (kW):
11
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
Competitive Price
Table Travel (X) (mm):
1000
Table Travel (Y) (mm):
500
Table Travel (Z) (mm):
580
Name:
XH715 machining center cnc lathe brands high speed milling machine
Model:
XH715
Table size:
1600*500
Table maximum load:
900kg
T slot(number-width-pitch):
5-18-80
Cutting feed:
1-5000mm/min
Main motor power:
11/15 KW
Machine dimension:
3500*2550*2400
Machine weight:
6700kg
Trade term:
EXW ,FOB ,CNF ,CIF
Supply Ability
Supply Ability:
100 Set/Sets per Month XH715 machining center cnc lathe brands high speed milling machi
Packaging & Delivery
Packaging Details
Name:XH715 machining center cnc lathe brands high speed milling machine
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

XH715 machining center cnc lathe brands high speed milling machine



Product Description



Standard accessories :

KND control system

Lubricating system

Full guard

Manual chip conveyor



Optional accessories :

Control system :KND,GSK,Siemens FANUC etc.

Chain type automatic chip conveyor

The forth axis

Spindle center water outlet ,spindle oil coolant

 Product main technical specifications:

specifications

unit

XH715

Table size

mm

1600X500

Table maximum load

kg

900

T slot(number-width-pitch)



5-18-80

X axis travel

mm

1000

Y axis travel

mm

500

Z axis travel

mm

580

Distance between spindle

center and column surface

mm

545

Distance between spindle

endface and worktable surface

mm

140-720/270-850

170-750/300-880

X/Y axis max.rapid traverse

m/min

15

Z axis  max.rapid traverse

m/min

12

Cutting feed

mm/min

1-5000

Spindle speed

r/min

80-3500

80-6000

Spindle taper



BT50

BT40

Main motor power

kw

11/15

X/Y/Z guide rail form



3 axis hard rail

positioning accuracy

mm

0.02/0.016/0.016

Repeat positioning accuracy

mm

0.012/0.008/0.008

Tool magazine capacity(standard/optional)



16/20

16/24

Max.tool dia.(adjoin/apart)

mm

152/200 125/150

80/130 80/150

Max. tool length

mm

300

Max.tool weight

kg

15

7

Machine dimension

mm

3500x2550x2400

Machine weight

kg

6700

6500

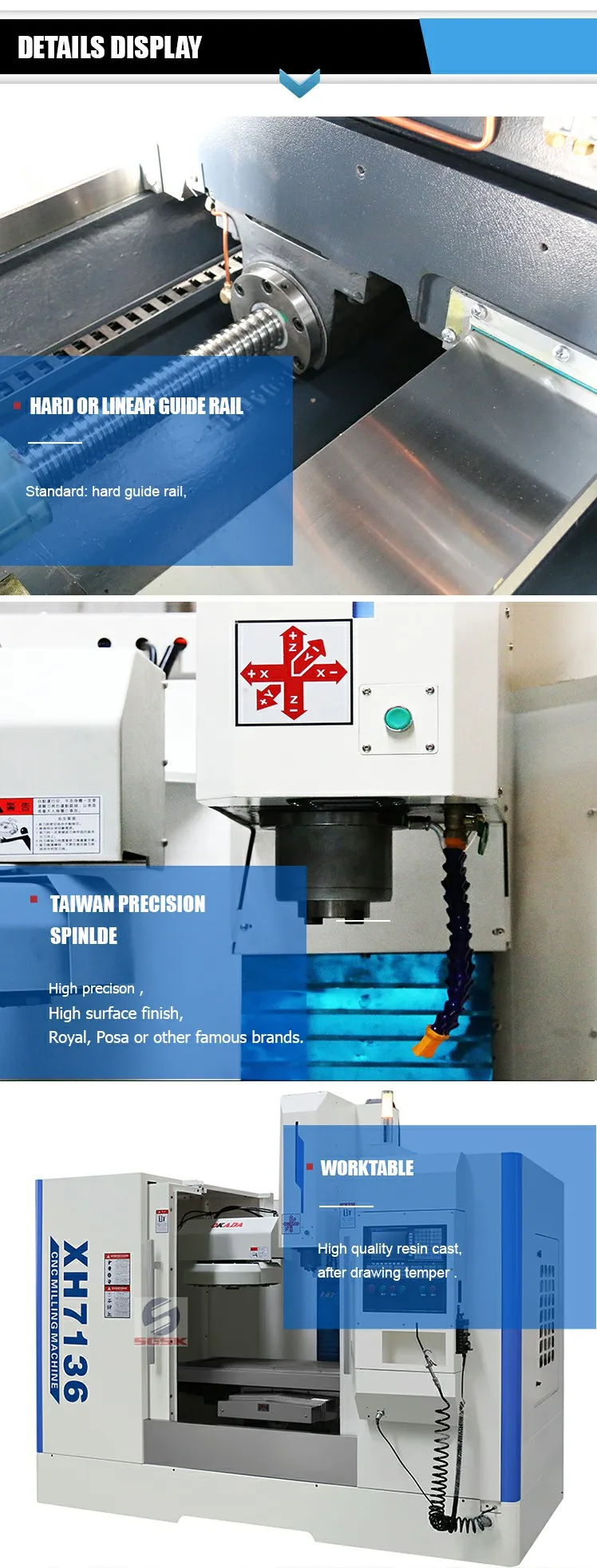

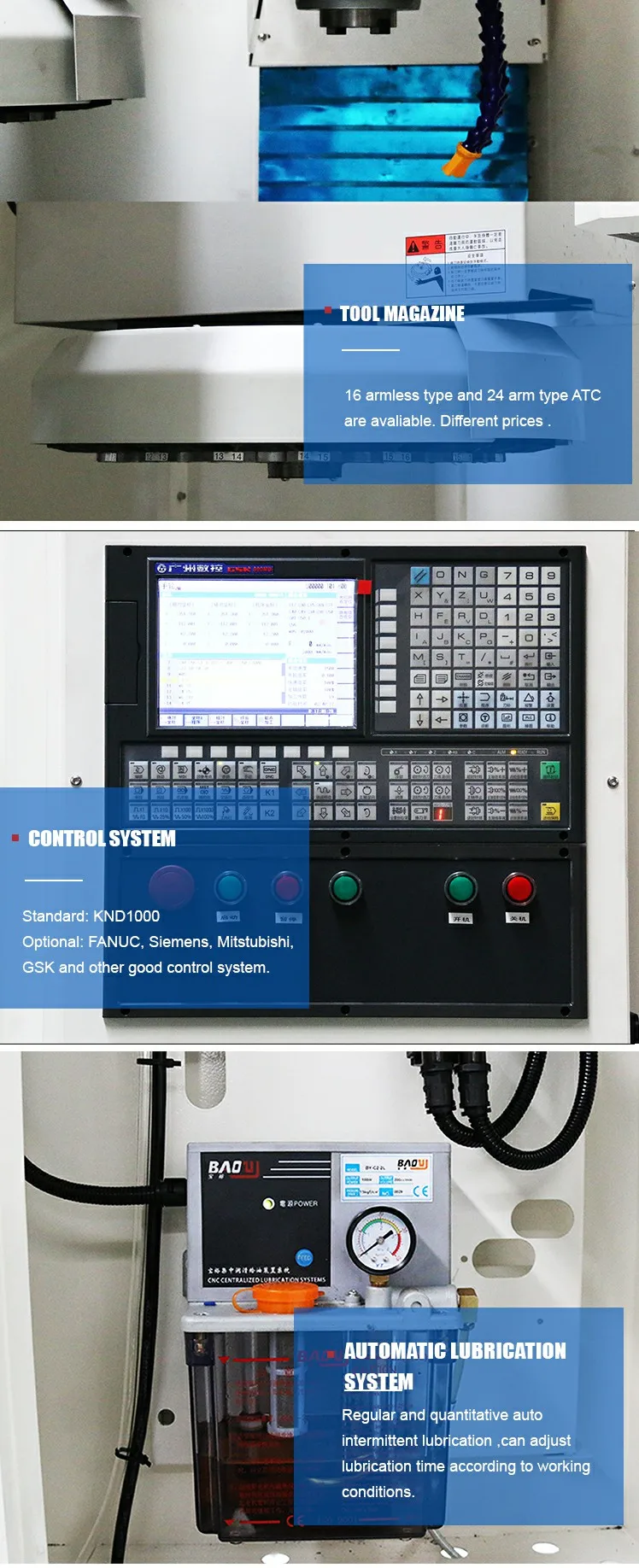

Details display



Related Products



Company Information



FAQ



1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

Packaging & Shipping



Machine model :
Package: polywood case and steel set below

Shipping term can be choosen FOB ,CIF And so on at QingDao port ShangHai port China .etc
