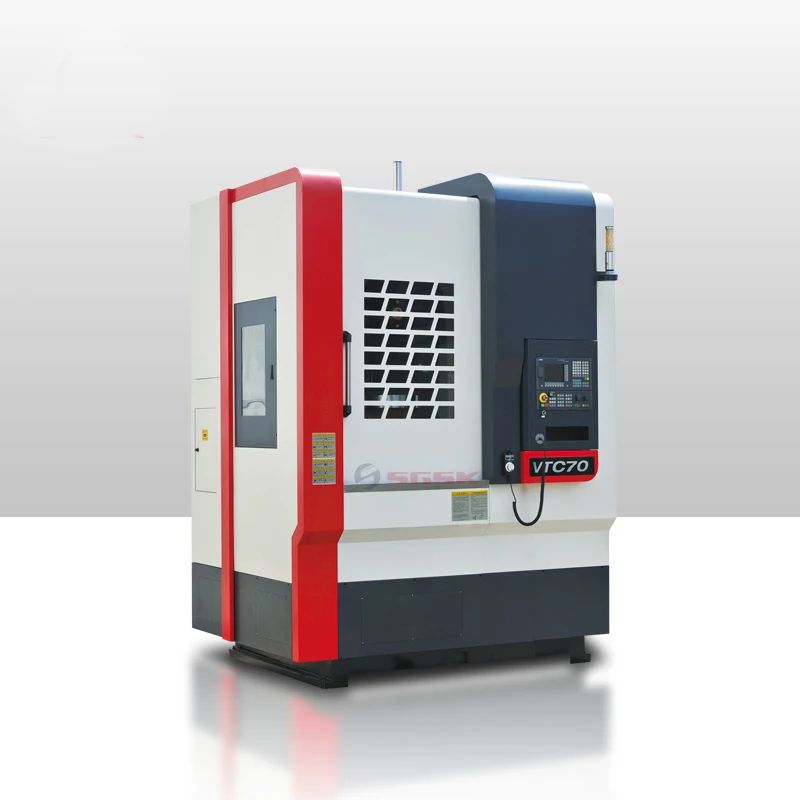

VTC70 chizhou vertical bench top lathe machine price

  • >=1 Sets
    $70,150.00
Model Number:
VTC70
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, factory
Condition:
New
Type:
Vertical
Weight (T):
3
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
Key Selling Points:
Competitive Price
Name:
VTC70 chizhou vertical bench top lathe machine price
Model:
VTC70
Maximum rotating diameter of machine:
700
Spindle speed step:
stepless
Spindle speed range:
100-1000
Cutting feed speed:
0.1~1000
Tool rest vertical movement length:
700
positioning accuracy:
0.008/0.012
Repeated positioning accuracy:
0.008
Machine tool overall dimension:
2050*1800*3200
Supply Ability
Supply Ability:
100 Set/Sets per Month VTC70 chizhou vertical bench top lathe machine price
Packaging & Delivery
Packaging Details
Name:VTC70 chizhou vertical bench top lathe machine price
Packaging :plywood case
Port
qingdao or any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

VTC70 chizhou vertical bench top lathe machine price



Product Description

Main Functions:

VTC60 machine tool is a kind of automation numerical control processing machine machine tool , applied to machining the internal and external cylinder, conical surface , end face, grooving and chamfering regarding components, and particularly suitable for machining automobile hub, discs and other components



Main Features:

1. The machine tool is of roller type linear slide rail, with ultrahigh rigidity and overload capacity, substantially improving positioning accuracy and bearing capacity in regard to vertical and horizontal feed movement.

2. The machine tool spindle belt pulley is connected with that of spindle numerical control servo motor through belt, equipped with 22Kw motor for infinitely variable speed of wide range, satisfying different spindle speed required for parts rough machining and finish machining.

3. The machine tool rest is of horizontal or vertical multi-station numerical control structure, shortening tool changing time, and greatly improving work efficiency.

4. The upper end of spindle may be equipped with disc type workbench or hydraulic chuck based on user’s requirements. The angling cylinder (single-piston and double-piston) is applicable to the lower end of the spindle. For the control of the workpiece and the hydraulic chuck

5. This machine tool may be equipped with domestic numerical control system of GSK, KND, GREAT, also imported system optionally by users.



Product main technical parameters:

Specifications

Units

VTC70

Maximum rotating diameter of machine tool

mm

700

Spindle speed step



stepless

Spindle speed range

rpm

100~1000

Cutting feed speed

mm/min

0.1~1000

Tool rest vertical movement length

mm

700

Tool rest horizontal movement length

mm

700

Rapid traverse speed vertically

mm/min

16000

Rapid traverse speed horizontally

mm/min

16000

Tool rest structure



Auto carriage

( horizontal or vertical)

Diameter of hydraulic chuck

mm

400 or 500

Main motor power

kw

22

positioning accuracy

mm

0.008/0.012

Repeated positioning accuracy

mm

0.008

Machine tool overall dimension

mm

2050x1800x3200


Related Products







Company Information



FAQ



1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.



2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.



3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.



4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.



5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .



6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.



8. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

Packaging & Shipping



Machine model :
Package: polywood case and steel set below

Shipping term can be choosen FOB ,CIF And so on at QingDao port ShangHai port China .etc
